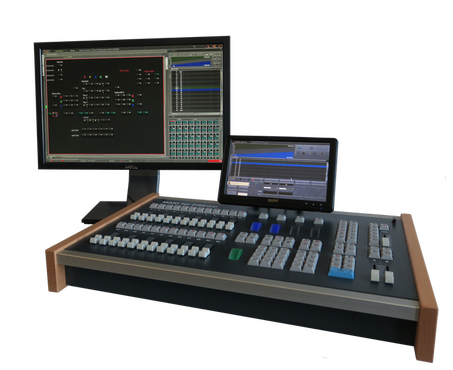

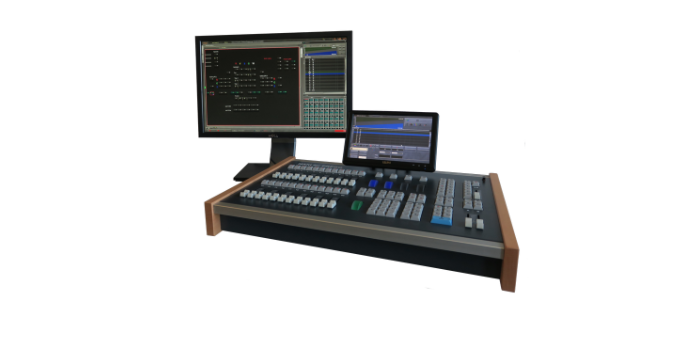

MAKI for Prego
MAKI puts the power of PREGO into a compact, professional console.

MAKI has many advanced lighting control interfaces. These include: an illuminated intensity or rate wheel, four illuminated attribute wheels, and a detachable 10''touch screen. Further controls are: a dedicated crossfader with GO button, a numeric keypad, dedicated function keys, and 24 or 48 submasters.
DMX output is available via DMX or Ethernet port. All industry standard DMX network protocols are supported. The PREGO licence selected determines the number of available DMX universes.
PREGO lighting software has a proven track record in professional lighting. We have focused the full power of PREGO for practical use in theatres and studios. MAKI’s robust and portable design is prefect for dynamic and creative working environments. PREGO provides all the functions needed for today’s multi-fixture entertainment world.The clear and logical structure of the PREGO software is unsurpassed. It is an easily mastered, yet powerful tool for modern stage lighting.

MAKI is available in 3 models:

MAKI 24 ‒ PREGO 128 free vorgeladen
Incl. Lilliput 10‘‘, 2 DMX Ports, Win 10/64, no Prego-Licence
MAKI 24 ‒ USB for external PC
Only USB, no Software, no CPU, 2 DMX Ports and USB Port
incl. Lilliput 10”, Driver and USB-Cable

USB Trackball and intelligent Key extension
No Power supply needed, with USB-Kabel, coming soon
MAKI Wing
USB, 24 Submaster-Fader with Power Supply and USB-Cable

A free Version of PREGO with 128 DMX-Outputs, working on external, available on demand.

MAKI Housing
The Console is made out of quality steel plate. There is an aluminium rail at the back edge for fixing accessories e.g. Lilliput monitor and protecting the connectors. Solid beechwood ends complete the MAKI's robust design.
Console Specification

Interface
10" Lilliput USB-Touchscreen
2 x 12 Submaster Faders
2 x 12 Submaster Buttons
2 Crossfade pair
1 Grandmaster
4 Moving Light control wheels (RGBW)
4 Moving Light control wheel buttons
1 Intensity/Rate control wheel (RGBW)
1 Numeric keypad with 12 buttons
57 Dedicated function buttons
1 USB3 port on top

Connectors
1 XLR 5 pin DMX-in
2 XLR 5 pin DMX-out
1 Ethernet
3 USB2-ports
1 XLR 3 pin dimmable worklight
1 HDMI/VGA

Internal PC
Intel 2 GHz Quad-Core
30 GB mSATA (minimum)
4 GB RAM

Dimensions:
Length: 426 ­mm
Width: 612 mm
Height: 80 mm
Weight: 9.5 kg

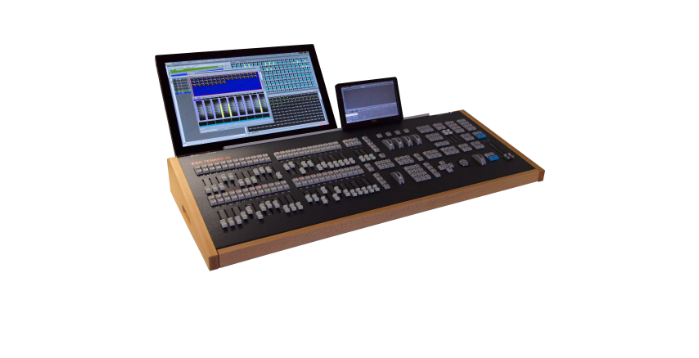

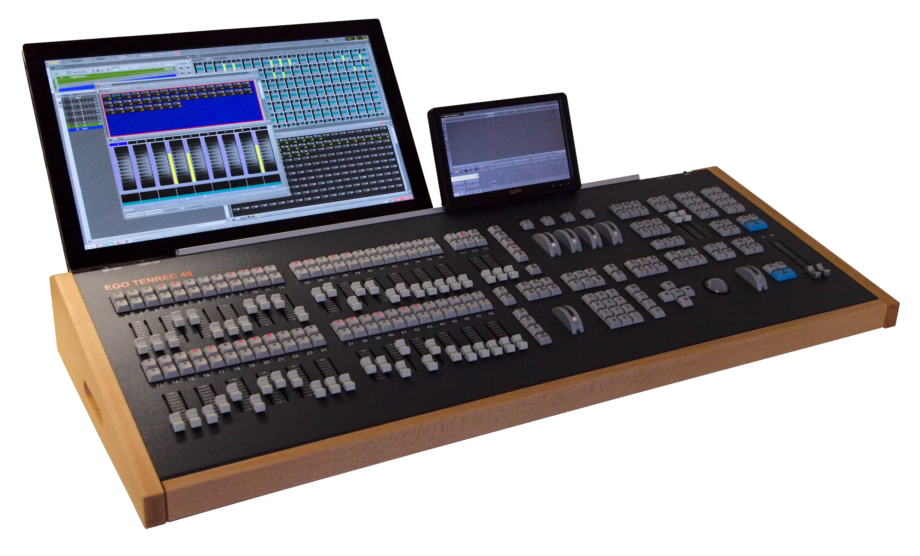

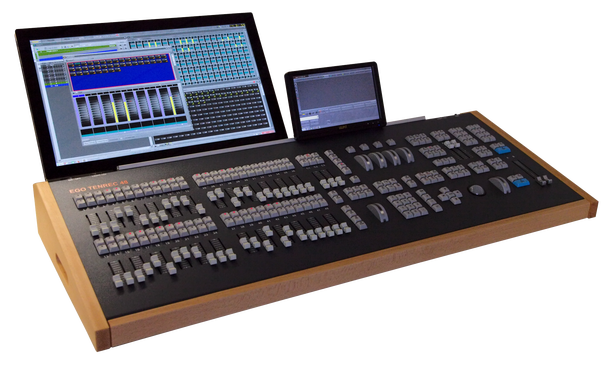

Tenrec
EGO TENREC is the solution for day to day work. This is your first choice for innovative, creative, inspiring lighting design for both  theatre and television.

EGO-TENREC has all the features expected of a modern lighting board - separate intensity and rate wheels, four vertical encoder wheels to  control the attributes of intelligent lighting fixtures, as well as a  trackball for pan & tilt, a 100mm crossfader pair and 48 submasters. The button layout is flexible and can be configured according to the user's needs.
DMX output is available either, through the built-in DMX ports or via Ethernet where all the usual lighting industry protocols are supported. The actual number of DMX universes available is determined by the PREGO  license bought with the console, this ranges from 3 to 128 universes and up to 65535 control channels.

TENREC 24, 6 physical universes
TENREC 48, 6 physical universes
TENREC 24 USB, for use with an external PC and your choice of software version
TENREC 48 USB, for use with an external PC and your choice of software version
TENREC USB Wing, 24 submasters with flash/assign and go keys
The EGO-TENREC has been designed for the contemporary lighting  professional who needs flexibility in operation running shows either as a fully timed sequence or from submasters. The ease of editing makes it a viable option for board operators working under the pressure of today's designers, who want to see the results of their creativity as soon as  possible.
Console Specification

EGO-TENREC is a robustly made lighting board using quality components  and manufactured in Europe. It is based on a 4th generation Intel i5  processor running Windows 8.1/10 with a SSD hard disc and 4GB RAM. Its  main features are:
  • 48 Submasters with flash/assign and go keys
  • RGBW LED Illuminated Intensity wheel
  • RGBW LED Illuminated Rate wheel
  • RGBW LED Illuminated Vertical Encoder wheels for moving light control
  • 100mm A/B Crossfader Pair
  • 3 Separate Submasters to control 3 fixed Fields
  • Grandmaster
  • Playback master
  • Illuminated Track-ball for pan-tilt
  • 6 XLR DMX 5pin output ports
  • 2 XLR DMX 5pin input
  • Fully user configurable key layout
  • 2 Ethernet ports
  • 2 USB2 ports (1 on top of the Console)
  • 2 USB3 Ports
  • VGA and 2 DVI outputs
